1. Introduction
In today's industrial landscape, equipment efficiency and service life are direct drivers of operational cost control and sustainable performance. Among the various heat exchanger configurations available, corrosion resistant tube sheet heat exchangers have gained significant traction for their rugged construction and proven resilience in aggressive service conditions. This guide offers a practical, engineering-oriented overview of their fundamentals, key benefits, selection criteria, and field-proven maintenance strategies-helping you make informed decisions that deliver long-term value.

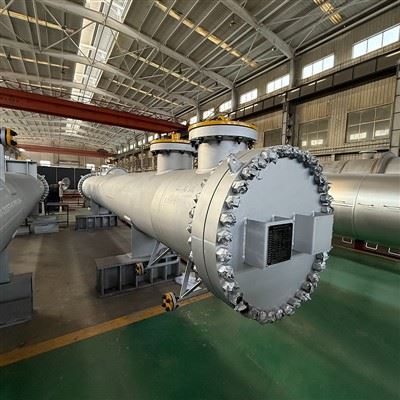

2. What Is a Corrosion Resistant Tube Sheet Heat Exchanger?
A tube sheet heat exchanger consists of a bundle of tubes secured into one or two tube sheets, enabling heat transfer between two fluid streams without intermixing. The tube sheet itself serves dual roles: it is both a structural support that holds the tubes in position, and a critical sealing barrier that prevents cross-contamination between the shell-side and tube-side fluids.
In corrosion resistant designs, the tube sheets-and often the tubes as well-are fabricated from specialty alloys such as stainless steel, titanium, Monel, or Hastelloy, or are protected with advanced coatings. This construction enables reliable operation in environments involving strong acids, alkalis, seawater, high-temperature steam, or halogen-containing media, substantially reducing the frequency of unscheduled maintenance and premature failure.
3. Key Benefits
Adopting corrosion resistant tube sheet heat exchangers delivers benefits that extend well beyond simple corrosion prevention. The following areas see tangible improvements:
3.1 Extended Service Life
The use of high-grade corrosion resistant materials effectively combats oxidation, pitting, crevice corrosion, and stress corrosion cracking caused by thermal cycling. This intrinsic durability translates to fewer replacements and a longer asset lifecycle.
3.2 Sustained Heat Transfer Efficiency
Corrosion deposits and scaling are major enemies of thermal performance. Resistant tube sheets maintain a cleaner, smoother heat exchange surface over time, ensuring that the designed heat transfer coefficient is preserved and energy consumption remains optimized.
3.3 Lower Maintenance Expenditure
Longer intervals between inspections and cleanings, reduced spare parts consumption, and fewer production interruptions directly contribute to lower overall maintenance costs and higher plant availability.
3.4 Enhanced Operational Safety
In processes handling flammable, toxic, or high-pressure fluids, the integrity of the tube-to-tubesheet joint is critical. Corrosion resistant designs provide a robust safety margin, minimizing the risk of leaks, pressure failures, and hazardous incidents.
4. Selection Criteria: Five Key Decision Factors
Selecting the wrong materials or configuration is one of the leading causes of premature heat exchanger failure. We recommend evaluating the following five dimensions systematically:
4.1 Material Compatibility with Process Fluids
This is the most fundamental consideration. Analyze not only the main process components but also trace impurities, and assess the corrosion rate of candidate alloys under the actual temperature and concentration ranges. The goal is to find the most cost-effective alloy that meets the required corrosion allowance-not necessarily the most expensive one.
4.2 Temperature and Pressure Ratings
The heat exchanger must withstand the combined effect of maximum operating temperature and maximum operating pressure. Special attention should be paid to transient conditions during startup, shutdown, and process upsets, where thermal and pressure shocks often occur.
4.3 Exchanger Configuration: Fixed vs. Removable Tube Sheet
Fixed tube sheet designs are simpler and more economical, suitable for clean shell-side services. Removable designs (U-tube or floating head) allow the tube bundle to be withdrawn for cleaning or replacement, making them preferable for fouling services or where large temperature differentials create significant thermal expansion stresses.
4.4 Thermal Performance and Sizing
Based on the required heat duty, flow rates, and allowable pressure drops, accurately determine the required heat transfer area, tube length, diameter, and tube layout. Proper flow distribution is equally important to avoid local hot spots, stagnant zones, or maldistribution that reduces overall effectiveness.
4.5 Compliance with Industry Standards and Codes
Ensure that the design, fabrication, inspection, and testing comply with recognized standards such as ASME Boiler and Pressure Vessel Code, TEMA, or GB/T 151. This not only guarantees quality but also facilitates regulatory acceptance and insurance coverage.
5. Installation, Operation, and Maintenance Best Practices
Even the most meticulously engineered heat exchanger will fail prematurely if installation and maintenance practices are substandard.
5.1 Installation Precautions
Pay special attention to flange alignment and bolting torque sequences. Misalignment or uneven bolt loading can distort the tube sheet and create leak paths. Use proper gaskets and follow the manufacturer's torque specifications strictly.
5.2 Routine Inspections and Condition Monitoring
Schedule regular inspections using non-destructive testing (NDT) techniques such as ultrasonic thickness measurement, dye penetrant, or eddy current testing. Tracking corrosion trends over time enables predictive, rather than reactive, maintenance planning.
5.3 Appropriate Cleaning Methods
Choose cleaning techniques-mechanical or chemical-based on the type of fouling present. For chemical cleaning, always verify the compatibility of the cleaning agent with the tube sheet material to avoid unintended attack on the base metal or protective layers.
5.4 Process Condition Control
Maintain stable operating temperatures, flow velocities, and pH levels as much as practical. Frequent fluctuations accelerate thermal fatigue and can break down passive films. In systems prone to stress corrosion cracking (e.g., austenitic stainless steels with chlorides), tight control of halide concentrations is especially critical.
6. Emerging Technologies and Future Trends
The field continues to evolve, with innovations that promise even greater reliability and performance:
6.1 Advanced Protective Coatings
Nano-ceramic and polymer-derived coatings are being developed to provide enhanced resistance to erosion, corrosion, and fouling, while also offering lower surface energy to reduce deposit adhesion.
6.2 Hybrid Metal-Composite Tube Sheets
Combining metallic strength with composite lightweight properties, hybrid designs can reduce overall weight without compromising pressure containment or corrosion resistance-particularly beneficial for offshore and skid-mounted applications.
6.3 Smart Monitoring and Digital Twins
Embedded sensors, including corrosion probes and fiber-optic temperature sensors, now enable real-time tracking of wall thickness, temperature distribution, and fluid chemistry. When integrated with digital twin models, this data supports advanced predictive maintenance and what-if scenario analysis.
7. Conclusion
Investing in a corrosion resistant tube sheet heat exchanger is not merely a procurement decision-it is a strategic commitment to long-term operational efficiency, safety, and cost stewardship. The key lies not in chasing the most expensive materials, but in finding the optimal balance between material science, thermal design, and site-specific operating conditions. By applying the selection principles and maintenance practices outlined in this guide, you can transform your heat exchanger from a potential failure point into a reliable asset that supports production growth and environmental responsibility. We hope this reference proves valuable in your upcoming projects and operational decisions.
