Plate Heat Exchangers

Plate Heat Exchangers for Industrial Heating and Cooling

Different industrial processes require different heat exchanger structures. A system handling water or oil may benefit from an accessible, gasketed plate pack, while applications involving high-temperature oil, corrosive liquids or steam may call for a fully welded design.

At Shandong Meiling International Trading Co., Ltd., we supply both gasketed and welded plate heat exchangers, with specific plate materials, sealing options and structural configurations for different operating conditions.

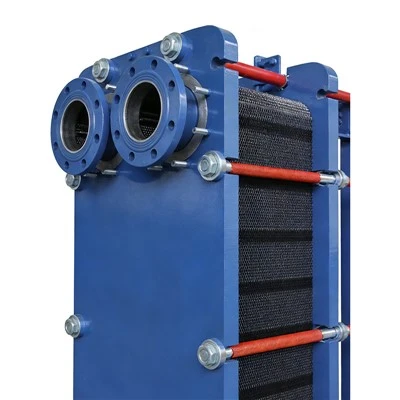

  • Gasketed Plate Heat Exchanger
    This Gasketed Plate Heat Exchanger adopts corrugated plate heat transfer structure. It features high heat transfer efficiency, easy disassembly and convenient cleaning. It is an energy-saving...
    read more
  • Welded Plate Heat Exchanger
    This welded plate heat exchanger adopts fully welded sealing structure without rubber gaskets. It can withstand high temperature and high pressure, resisting corrosion and high viscosity media. It...
    read more


1. Gasketed and Welded Plate Heat Exchangers

Gasketed Plate Heat Exchanger

Our gasketed plate heat exchangers use corrugated metal plates assembled in a bolted frame with rubber sealing gaskets. Hot and cold fluids flow through alternating channels, transferring heat across the plates.

The bolted construction makes the plate pack accessible for inspection and cleaning. Individual gaskets can be replaced, making this design suitable for industrial processes where routine cleaning and maintenance access are important.

Typical applications include:

  • Industrial liquid heating and cooling
  • Process heat recovery
  • Water, oil and brine heat transfer
  • Low-corrosivity liquid applications

Available materials and configurations

Item Available Options
Plate materials Carbon steel, stainless steel, titanium alloy
Gasket materials EPDM, NBR, high-temperature Viton rubber
Plate configuration Plate area and flow-channel spacing
Design customization Pressure and temperature ratings

We also supply replacement heat transfer plates, rubber gaskets and circulation water pumps for related equipment requirements.

Welded Plate Heat Exchanger

For applications where rubber gaskets are unsuitable, our welded plate heat exchangers offer a fully welded construction without rubber sealing gaskets. The product uses laser full-penetration welding.

This structure is used for heat transfer involving high-temperature oil, corrosive liquids, high-viscosity fluids and steam. It is also applied in petrochemical processing, metallurgy and power generation.

Available materials and configurations

Item Available Options
Plate materials 304, 316L, 2205 duplex stainless steel, titanium alloy
Plate configuration Plate pattern and flow-channel structure
Design customization Welding standards and pressure ratings
Auxiliary equipment Filters and pressure gauges

The welded design provides an alternative to gasketed construction when selecting equipment for demanding fluid and operating conditions.

2. Selecting Materials and Specifications

The plate and sealing materials should match the actual process fluid and operating conditions. A material suitable for one application may not be appropriate for another.

Our published material options include carbon steel, stainless steel and titanium alloy for gasketed products, and 304, 316L, 2205 duplex stainless steel and titanium alloy for welded products. Gasket selection for gasketed equipment includes EPDM, NBR and high-temperature Viton rubber.

For initial equipment selection, the main technical information includes:

Selection Parameter Required Information
Process fluids Hot-side and cold-side media and fluid composition
Heat transfer duty Required heating or cooling capacity
Flow rate Flow rate on both sides
Temperatures Inlet and outlet temperatures on both sides
Pressure Operating pressure and design pressure
Design limits Design temperature and allowable pressure drop
Fluid characteristics Viscosity, corrosiveness and suspended solids
Installation Connection direction, connection type and available space

We use these operating conditions as the basis for matching the product structure, material selection and configuration.

For fluids containing sediment or suspended solids, filtration before the heat exchanger should be considered to reduce the risk of channel blockage.

3. Configuration and Customization Options

We offer specific configuration adjustments for both product types rather than relying on a single standard arrangement for every application.

For gasketed plate heat exchangers, we can adjust:

  • Plate area according to heat transfer requirements.
  • Flow-channel spacing.
  • Plate material: carbon steel, stainless steel or titanium alloy.
  • Gasket material: EPDM, NBR or high-temperature Viton rubber.
  • Pressure and temperature ratings according to design requirements.

For welded plate heat exchangers, available adjustments include:

  • Plate pattern.
  • Flow-channel structure.
  • Plate material: 304, 316L, 2205 duplex stainless steel or titanium alloy.
  • Welding standards.
  • Pressure ratings according to project requirements.

These options allow the equipment configuration to be selected according to the process fluid, heat transfer duty and design conditions.

4. Why Source Plate Heat Exchangers from Meiling?

Shandong Meiling International Trading Co., Ltd. operates within Meiling Group, an industrial equipment business established in 1958 and headquartered in Zibo, Shandong, China.

Our group has more than 600 employees, with technical personnel accounting for over 30% of the workforce. Engineers, technical staff and skilled production personnel support the group's industrial equipment operations.

The group operates two factories and has a broader industrial equipment portfolio covering:

  • Plate Heat Exchangers
  • Shell and Tube Heat Exchangers
  • Air Cooled Heat Exchangers
  • Storage Tanks
  • Heat Exchanger Parts

Our group manufacturing processes include precision cutting, mechanical machining, assembly, welding and finished-product inspection. This manufacturing background supports our broader industrial equipment supply operations.

The group profile also identifies ASME certification, an ISO quality management system and pressure vessel manufacturing licensing.

For customers sourcing plate heat exchangers alongside other industrial heat transfer equipment, our product portfolio provides a broader sourcing option within one industrial equipment business.

5. Request a Plate Heat Exchanger Quotation

Send us your application details to start selecting the appropriate gasketed or welded plate heat exchanger.

For an initial quotation, useful information includes:

  • Hot-side and cold-side fluids
  • Required heat transfer capacity or flow rate
  • Inlet and outlet temperatures
  • Operating or design pressure
  • Preferred plate or gasket materials
  • Estimated order quantity

You can also send an existing model number or technical drawing if available.

Contact Shandong Meiling International Trading Co., Ltd. to discuss your plate heat exchanger requirements and request a quotation.
